Onderdeel rc auto / Boat Proteus x520 brushless motor 1:5 1:8 SK-400008 Onderdeel rc auto / Boat Proteus x520 brushless motor 1:5 1:8 SK-400008 Onderdeel rc auto / Boat Proteus x520 brushless motor 1:5 1:8 SK-400008
Onderdeel rc auto / Boat Proteus x520 brushless motor 1:5 1:8 SK-400008 Onderdeel rc auto / Boat Proteus x520 brushless motor 1:5 1:8 SK-400008 Onderdeel rc auto / Boat Proteus x520 brushless motor 1:5 1:8 SK-400008
Onderdeel rc auto / Boat Proteus x520 brushless motor 1:5 1:8 SK-400008
0 Review | Review toevoegen
Onderdeel rc auto / Boat Proteus x520 brushless motor 1:5 1:8 SK-400008

Artikelnummer

SK-400008-03

Verzendkosten

€ 0,00

€ 156,95
Prijs per set

Voorraad :

Aantal:
Bestellen

Onderdeel rc auto / Boat Proteus x520 brushless motor 1:5  1:8 SK-400008-3


  • Rotor - 4 Pole Neodymium Magnets
  • Stator - Super Thin(0.2mm) Laminations
  • High Quality Bearings
  • Super Strength 8mm shaft
  • With Water Cooling Shell
  • 6 Connectors
  • 2 wire configuration-Triangle & Star

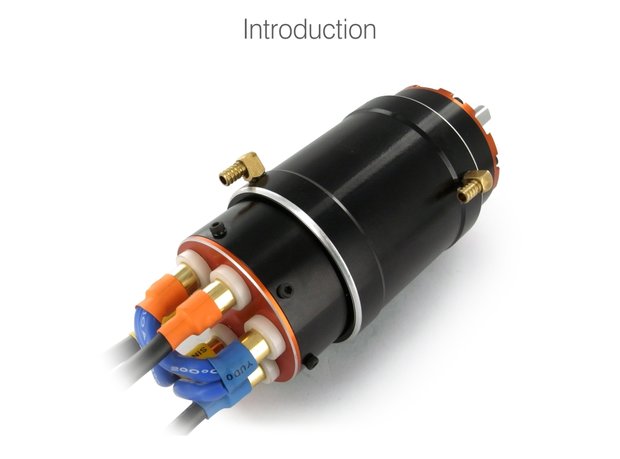

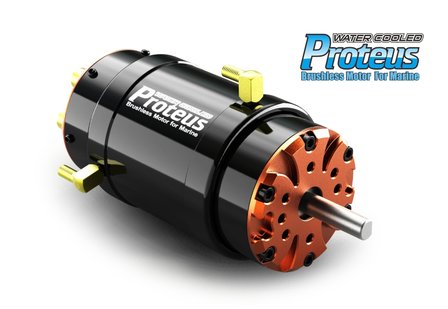

  Proteus Series Motors are designed for large scale RC boat (1.5-2m length).
The revolutionary design of Proteus Motors is its unique wire configuration. There are six connectors on the motor and the user can switch the wire configuration (star or triangle) by themselves at any time. When the user requests the motor with more RPM and high speed, he could use triangle configuration; when the user requests the motor with more torque and power, he could use star configuration. In this case, one piece of motor can meet the user's request for speed or power in different situation.

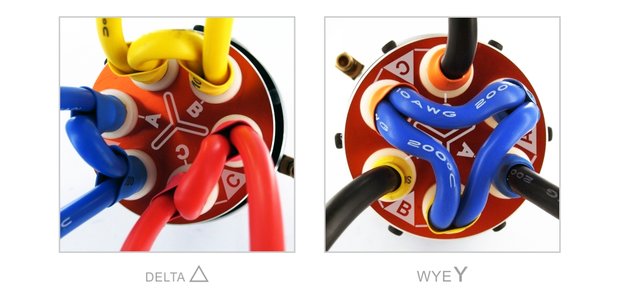

  These motors can be switched between STAR and TRIANGLE wire configuration.
Triangle Configuration=More RPM
Star Configuration=More Torque


  There is water cooling shell outside of the motor. It is designed to cool down the motor temperature so that the motor could perform best.




Item No Product Name Watts Max Voltage Max Amps Resistance KV  (RPM/volt) Max RPM Length Diameter (w/fins) Weight Shaft Diameter Length of extend shaft
SK-400008-03 X520 3Y 5280 41V 128A 0.0132 730 30000 102mm 55.8mm 925g Φ8mm 30mm
SK-400008-03 X520 3D 5280 23V 229A 0.0046 1,280 30000 102mm 55.8mm 925g Φ8mm 30mm
