Artikelnummer
: RC8X
Verzendkosten
: € 0,00
Voorraad :
Radiolink Zenderset pistoolzender RC8x 8-channel radio with R8FG gyro integrated Receiver
8 Channels for Multiple types of Models
Parameters easily to set

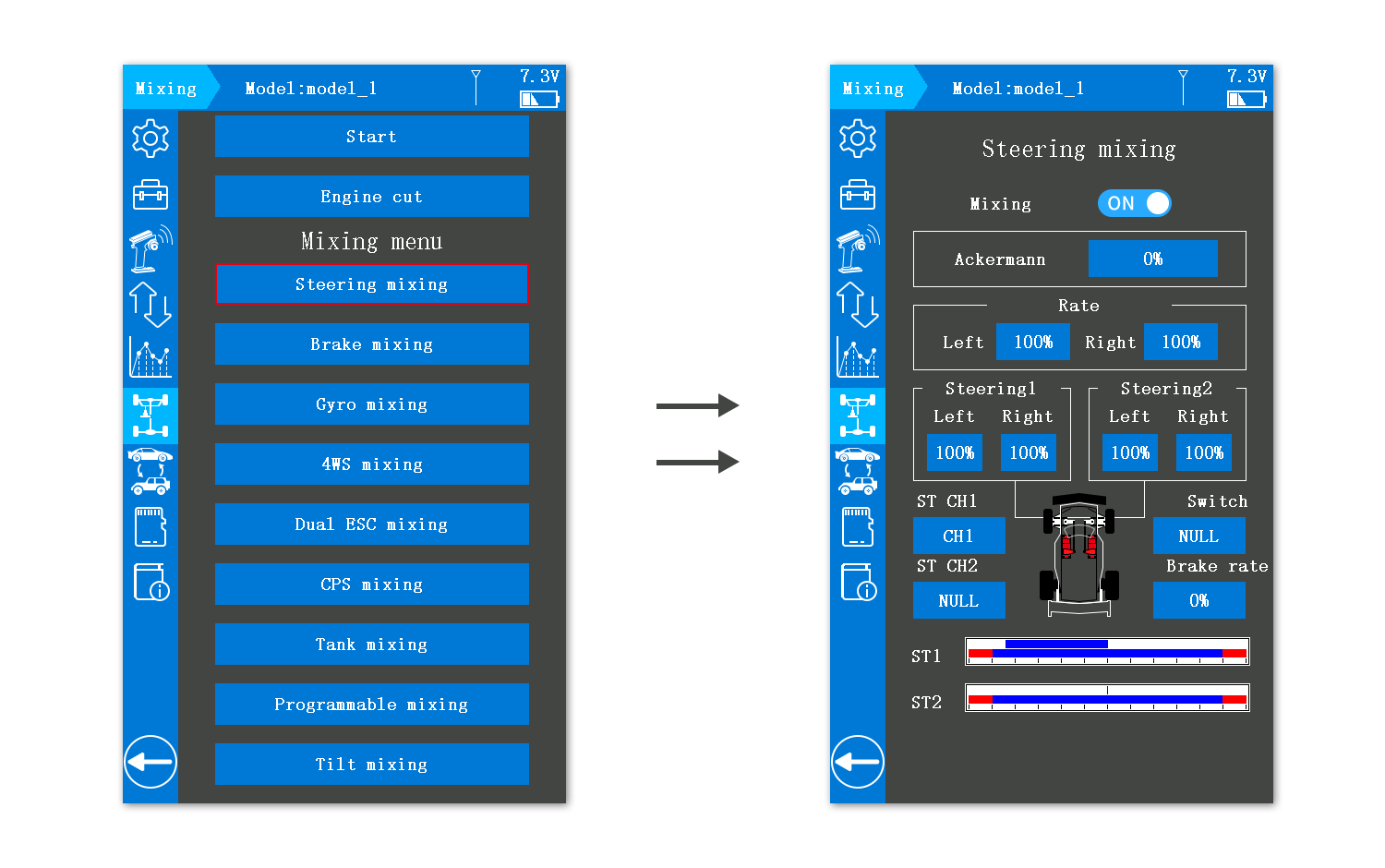

4WS mixing designed for crawlers, timber truck and other 4WS types vehicles
brake mixing makes the front and rear wheel of 1/5 gas power cars and other large cars can be adjusted independently
Tank mixing is designed for the dual-engine intended for vehicles such as tanks
Tilt mixing is designed for boat, easy to set the parameters and fully enjoy the boating.
Customizable Gyro sensitivity
Standard receiver R8FG packed is the receiver with built-in gyro and supports high voltage servo
It is anti-slip and keeps the uni-direction, with the integrated gyro in R8FG installed, the vehicle turns more smoothly,
and drifting from high speed can be prevented.
Threaded design helps antiskid when the drivers are at long-time practice or in hot weather

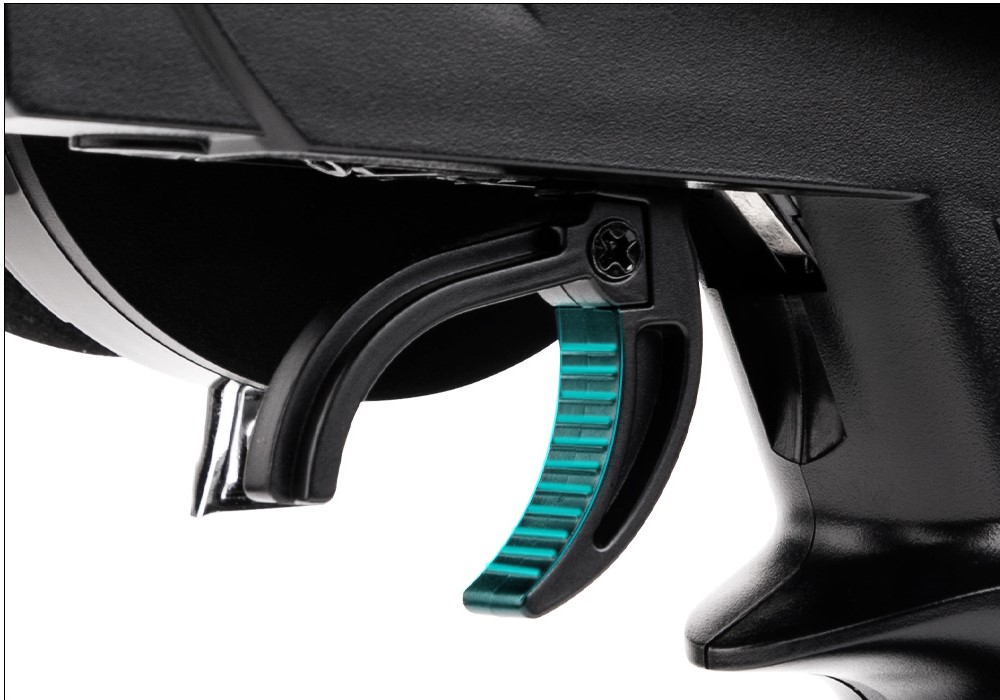

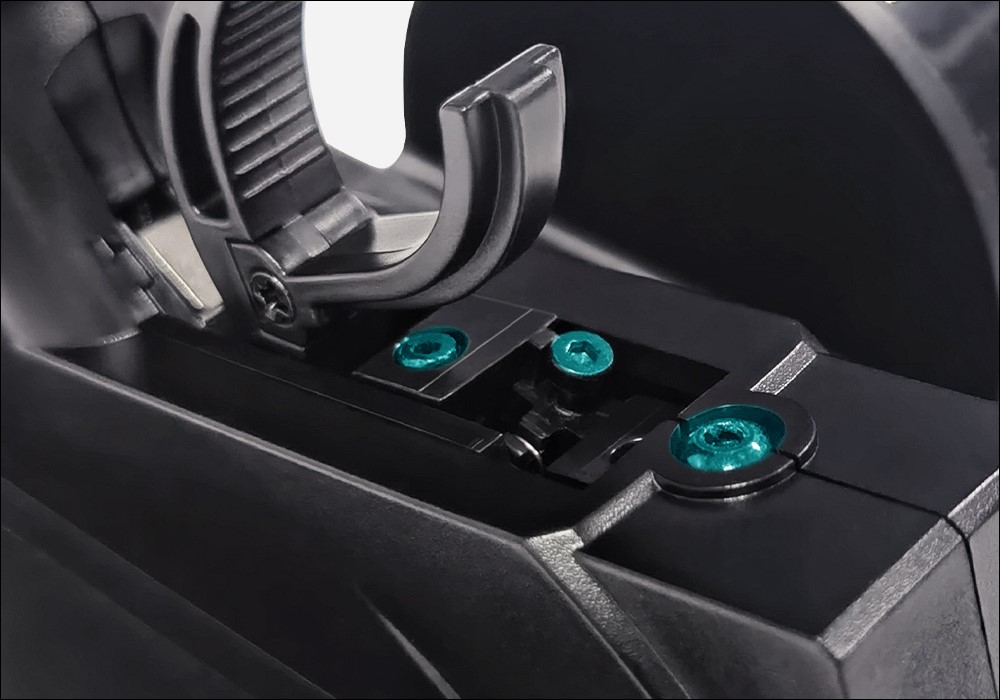

The trigger spring's tension and trigger slide of RC8X can be adjusted

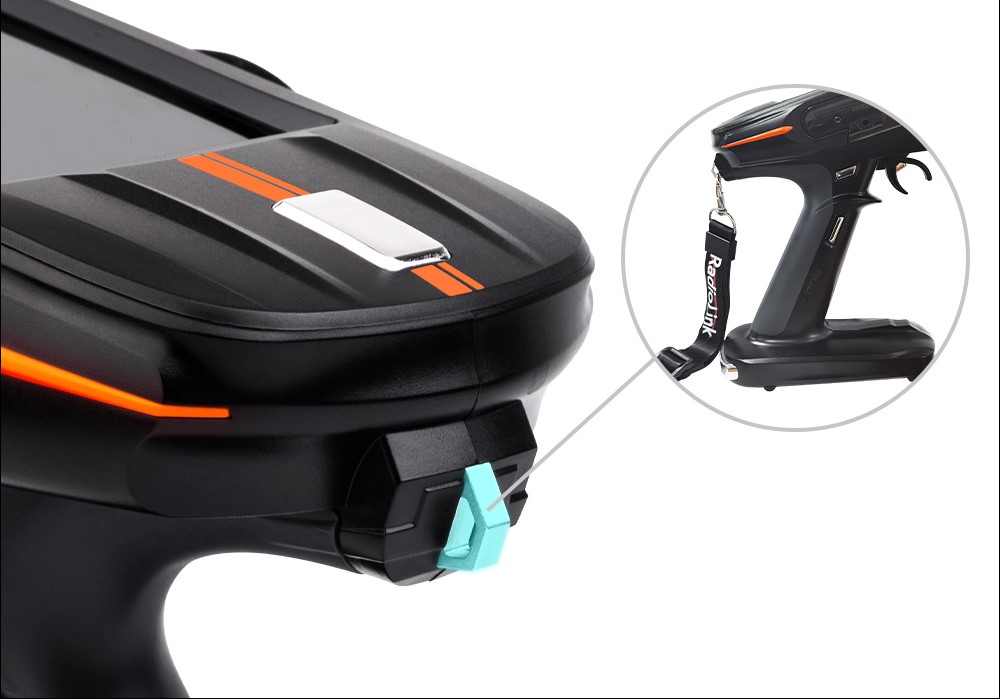

A lanyard to make the suitable weight highly compatible with drivers' control habits to make the long drive more pleasant
Various switch styles for easy recognition and usage

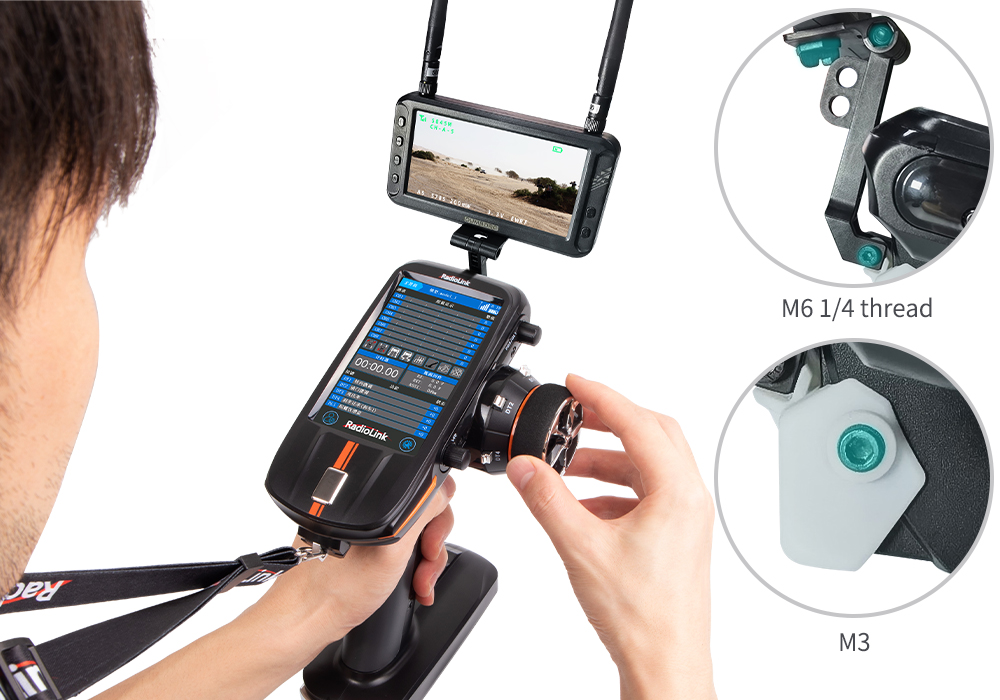

FPV display holder designe helps the drivers enjoy the FPV fun of driving

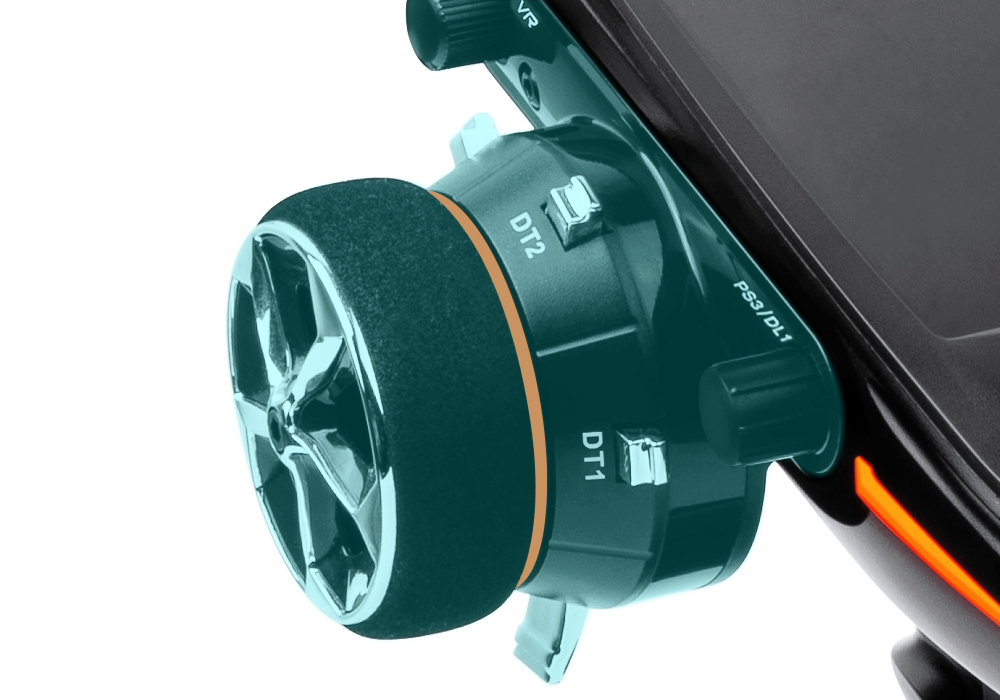

Lefty friendly: the left and right installation directions of the wheel selection can be reversed

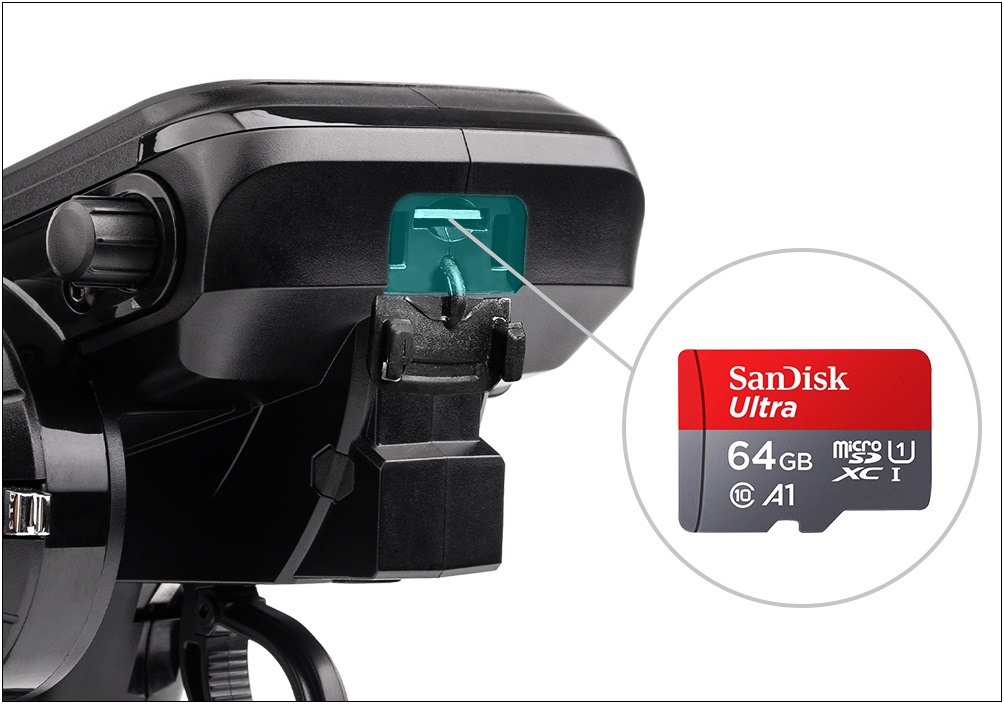

Up to 64 GB memory expansion

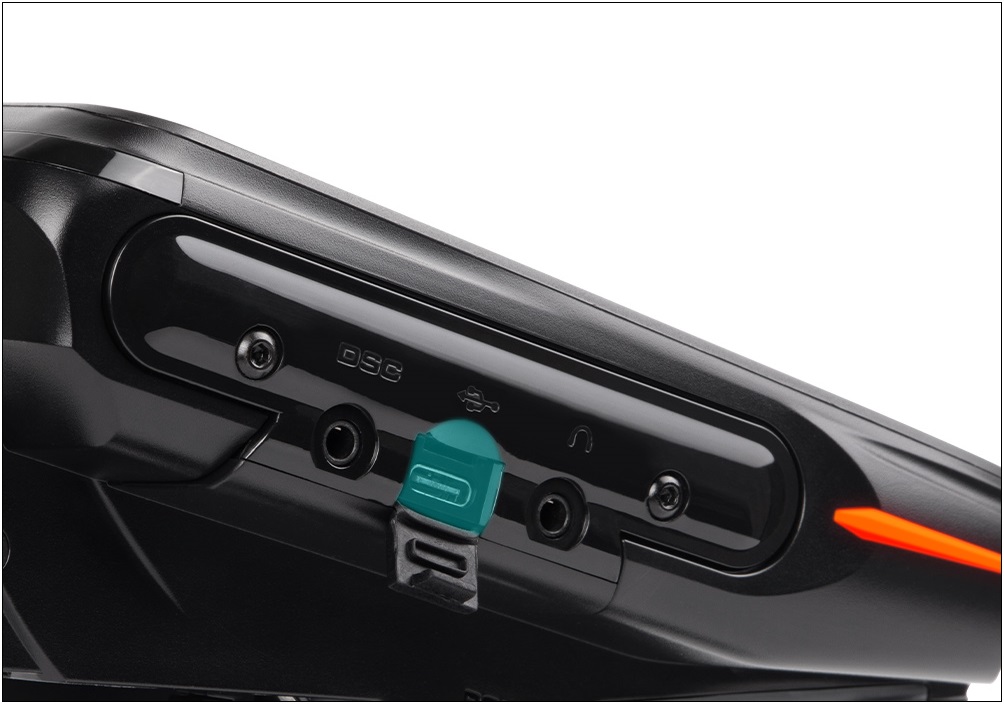

USB (type-C) online upgrade

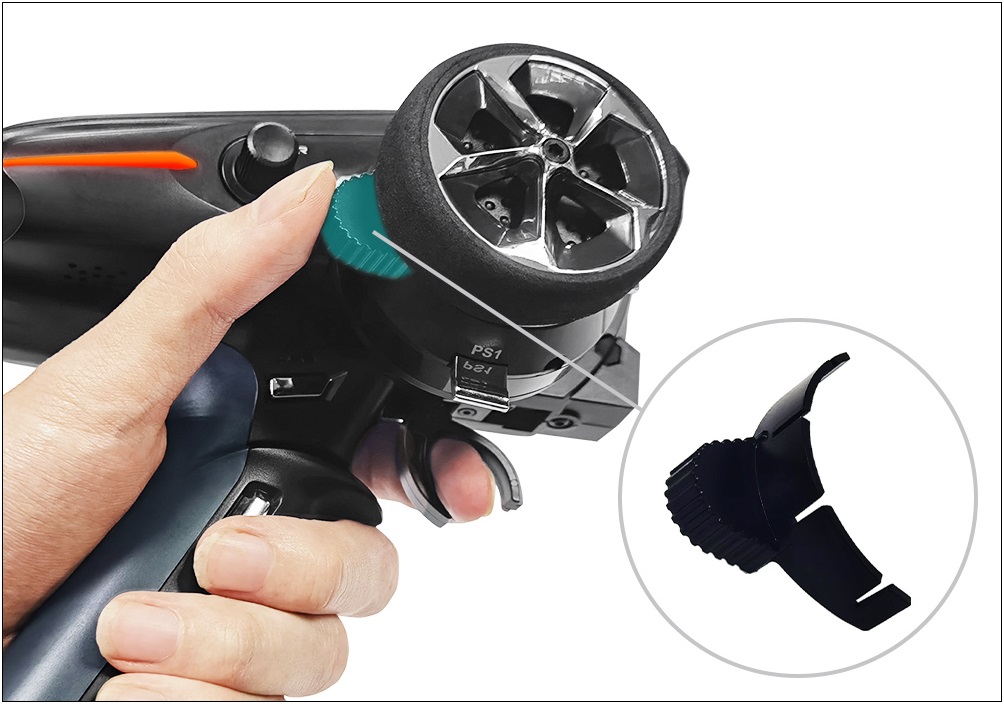

The thumb lever makes it possible to steer one-handed safely
Reverse polarity protection circuit

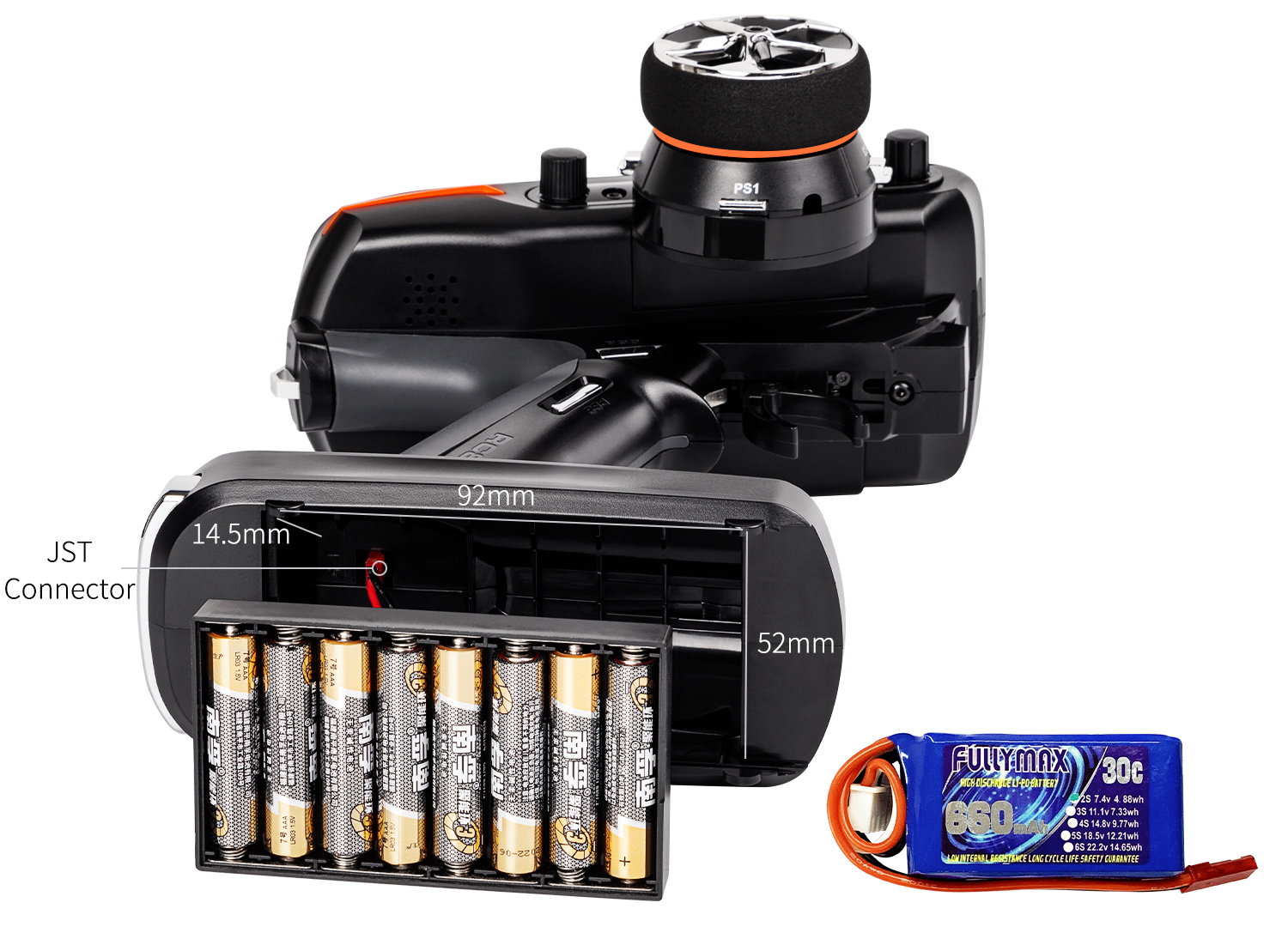

RC8X is easily adapted for various battery layouts with wide operating voltage tolerance:
8 pcs of AAA batteries or a 2S-4S LiPo or a 6S Ni-MH battery universal jst connector with the voltage protection software of Radiolink ensure vital components are protected from reverse polarity connection
Compatible with old version receivers R4FGM/R4F, R6FG/R6f, R7FG and the R8EF/R8F
Dimensions
L*W*H= 121*163*209mm (4.76”*6.42”*8.23”)
Weight
438.5g (15.47oz)
Antenna Length:
Built-in antenna
Dimension of Battery Case:
L*W*H= 92*52*14.5mm (3.62”*2.05”*0.57”)
Frequencies Band:
2.4GHz ISM band (2400MHz ~ 2483.5MHz)
Spread Spectrum Mode:
FHSS, 67 channels pseudo random frequency hopping
Modulation Mode:
GFSK
Channels:
8 channels
Applicable Model Types:
Car / Boat / Robot
Screen
4.3 inches, full-color, blacklit LCD touch screen
Model memory
200 group of models’ storage
Ground control distance
600 m (1968.5ft) (max range tested in unobstructed areas free of interference)
Operating voltage
7~17V DC (8 pieces of AAA batteries or a 2S-4S LiPo battery or a 6S Ni-MH battery)
Operating Current
250mA±10mA@8.4V(the LCD screen light on), 190mA±10mA@8.4V(the LCD screen light off)
Transmission Power
<20dBm
Channel resolution
4096 with regular jiter of 0.5us
Low voltage alarm
low transmitter voltage, low receiver voltage, low model battery voltage or low RSSI alarm can be customized
Compatible receiver
R8FG(Std), R7FG, R6FG, R6F, R8EF, R8FM, R8F, R4FGM, R4F
Voice broadcast
Support
Menu customized
Menu, font, desktop, etc…. can be customized
CRSF protocol supported
Compatible wit TBS Crossfire
FPV head track function
